Oil Filter FO005 for Cummins X15 / ISX15 / ISX12: LF14001NN Cross-Reference

Name: Oil Filter FO005 for Cummins X15 / ISX15 / ISX12: LF14001NN Cross-Reference
Brand: Steinberg
SKU: FO005
Price: 42.32 USD
Availability: InStock

SKU: FO005OEM: 4906633Cross: LF1400NN, LF14001NN, 490663...

Confirmed Vehicle Compatibility

Freightliner Cascadia (Cummins X15)Freightliner Cascadia (Cummins ISX15)

Kenworth T680 (Cummins X15)Kenworth T880 (Cummins ISX15)Peterbilt 579 (Cummins X15)Volvo VNL (Cummins ISX15)International LT (Cummins X15)Mack Pinnacle (Cummins ISM)

$42.32

In Stock· Ships Today (order before 2PM CST)

Need 10+ units? Apply for wholesale pricing →

Secure checkout

OEM-grade certified

30-day returns

Thread Size

M95 x 2.5-7H INT

Outer Diameter

119 mm (4.68 in)

Height

295 mm (11.60 in)

Filter Media

Dual-stage synthetic (30/10 micron)

OEM Reference

4906633

Cross Reference

LF1400NN, LF14001NN, 4906633, 4367100, BD50000, B40145, P559000

Freightliner Cascadia (Cummins X15)Freightliner Cascadia (Cummins ISX15)Kenworth T680 (Cummins X15)Kenworth T880 (Cummins ISX15)Peterbilt 579 (Cummins X15)Volvo VNL (Cummins ISX15)International LT (Cummins X15)Mack Pinnacle (Cummins ISM)

Not sure about your truck? Contact us with your make, model and year — we'll confirm compatibility within 1 business day.

Prepare & Safety First

Park on level ground, engage parking brake. Allow engine to cool for at least 30 minutes. Have drain pan and proper tools ready.

Remove Old Filter

Use a filter wrench to loosen and remove the existing filter. Let residual fluid drain completely into your pan.

Prep New Filter

Apply a thin coat of clean oil or fuel to the new filter's gasket seal. This ensures a proper, leak-free seal.

Install & Torque

Thread the new filter on by hand until gasket contacts, then tighten 3/4 to 1 full turn. Do NOT over-torque.

Start & Verify

Start the engine and let it idle for 2–3 minutes. Check for leaks. Check fluid level and top off if needed.

Download Full Installation PDF →

About This Filter

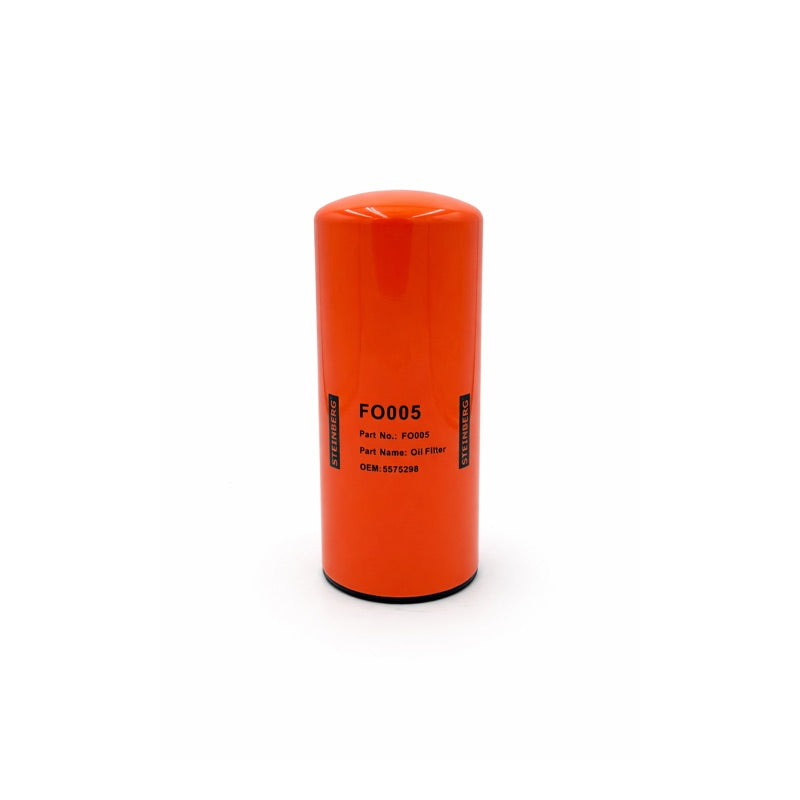

The Steinberg FO005 is a high-velocity dual-flow extended service combination spin-on lube oil filter engineered for Cummins X15, ISX15, and ISX12 heavy-duty diesel engines. Combining 30-micron primary media for Stage 1 with 10-micron secondary media for Stage 2 in a single canister, it delivers superior engine protection with extended drain intervals compared to the standard LF14000NN.

Carries Cummins OEM part number 4906633 and is the extended service upgrade of Fleetguard LF14001NN. Replace at each extended PM service interval per Cummins specifications.

Compatible Engines & Trucks

Cummins X15 / ISX15 — Freightliner Cascadia, Kenworth T680/T880, Peterbilt 579
Cummins ISX12 / X12 — Kenworth, Peterbilt (select applications)
Cummins ISM, ISX, QSX, QSM — Freightliner, Volvo VNL, Mack, Western Star, International

Specifications

Thread: M95 x 2.5-7H INT
OD: 119 mm (4.68 in)
Height: 295 mm (11.60 in)
Stage 1: Primary synthetic (30 micron) · Stage 2: Secondary synthetic (10 micron)

Cross Reference

OEM: 4906633 · Fleetguard LF14001NN · Fleetguard LF14000NN · Cummins 4367100 · Baldwin B40145 · Baldwin BD50000 · Donaldson P559000 · WIX WL10107

Compatible Part Numbers

Oil Filter FO005 for Cummins X15 / ISX15 / ISX12: LF14001NN Cross-Reference (SKU: FO005) is a direct replacement for the following OEM and aftermarket part numbers:

LF1400NNLF14001NN49066334367100BD50000B40145P559000

OEM Reference Number

The OEM reference number for this filter is 4906633. Use this number to verify fitment with your truck manufacturer's parts catalog.
